INDOOR LED DISPLAY

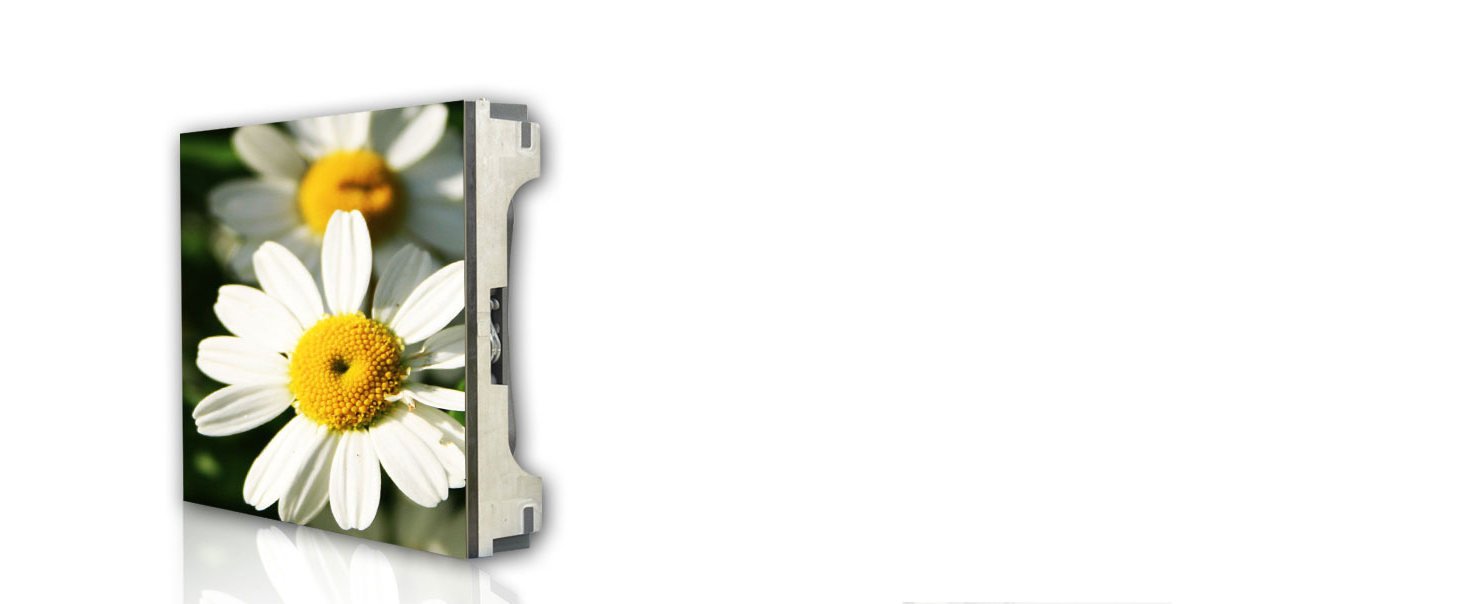

Indoor LED Display
COG Project Series
Products introduction: The MLED business furnishes new-type LED display systems and solution for customers leveraging its high-precision chip-on-glass (COG) process, unique active matrix (AM) mode, and high-efficiency & high-precision transfer printing technology.
PRODUCT HIGHLIGHTS
Ultra-simplified structure
Innovative architecture creates a thinner, lighter cabinet with weight reduced by more than 25% compared with traditional enclosures.
Efficient assembly
Greater integration supports faster assembly and a 7680 Hz high refresh rate with high contrast.
Higher image quality
Active-matrix drive and high-precision transfer-printing technology support refined, stable visual performance.
Higher flatness
The inherent properties of glass-based materials contribute to excellent surface flatness.
APPLICATION SCENARIOS
SPECIFICATION
| Group | Specification | RB-COG 0.78 | RB-COG 0.93 |
|---|---|---|---|
| Lamp Panel | Pitch (mm) | ● | 0.935 |
| LED Type | ● | Flipchip | |
| Resolution | ● | 320*180 | |
| Size (mm*mm) | ● | 299.2 (H) * 168.3 (V) | |
| Production Grade | ● | Ip65 | |
| Assembly Unit | Composition of Assembly Unit | ● | 1*3 LampPanel |
| Assembly Unit Resolution | ● | 320*540 | |
| Unit Size (mm*mm) | ● | 299.2*504.9 | |
| Pixel Density (dot/m²) | ● | 1143870 | |
| Maintenance Mode | ● | Front maintenance | |
| Cabinet Unit | Composition of Cabinet Unit | ● | 1*2 AssemblyUnit |
| Cabinet Unit Size (mm*mm) | ● | 598.4*504.9 | |
| Cabinet Unit Resolution | ● | 640*540 | |
| Cabinet Overall Thickness (mm) | ● | 63.5mm@Central /28.6mm@Edge | |
| Cabinet Overall Weight (kg) | ● | 8.2 | |
| CabinetFlatness (mm) | ● | ≤0.09 | |
| Average Power of a cabinet (W) | ● | 37 | |
| Maximum Power of a cabinet (W) | ● | 112 | |
| Average Power PerSquareMeter (W) | ● | 123 | |
| Maximum Power PerSquareMeter (W) | ● | 370 | |
| Electrical Parameters | Power Supply Requirement (V) | ● | AC 100-240 |
| Single Point Luminance Correction | ● | Support | |
| Single Point Chromaticity Correction | ● | Support | |
| Equilibrium Luminance (cd/m²) | ● | Typ.600, Peak.1000 | |
| Chromaticity Coordinate | ● | Typ0.284 0.294 | |
| Color Temperature (K) | ● | Typ9300 1500 15000 | |
| Color Gamut | ● | ≥110% NTSC | |
| Optical Parameters | Luminance Uniformity | ● | ≥97% |
| Chromaticity Nonuniformity | ● | Δu′v′≤0.005 | |
| Horizontal Luminance Viewing Angle (°) | ● | 160±10 | |
| Vertical Luminance Viewing Angle (°) | ● | 160±10 | |
| Horizontal Chroma Viewing Angle (°) | ● | 170±10 | |
| Vertical Chroma Viewing Angle (°) | ● | 170±10 | |
| Bright-room Contrast | ● | ≥10000:1 | |
| Dark-room Contrast | ● | ≥1000000:1 | |
| System Parameters | Dark screen non-uniformity | ● | ≤8% |
| Frame Frequency (Hz) | ● | 120 | |
| Drive Mode | ● | AM constant current drive | |
| color depth | ● | 8/10bit | |
| HDR | ● | support | |
| EMC | ● | ClassA |
